In the evolving world of construction, the selection of building materials may control the efficiency, economy, and sustainability of a project. Various options, from conventional red clay bricks to concrete blocks and fly ash bricks, provide building materials that have their own strengths and limitations.
However, AAC blocks are fast becoming a groundbreaking material. Its lightweight form, thermal insulation, and eco-friendliness are all factors for the growing popularity of AAC blocks across India. In this blog, we take a deep dive into the specifications that designate AAC blocks as not just an intelligent choice but also the future of modern construction.

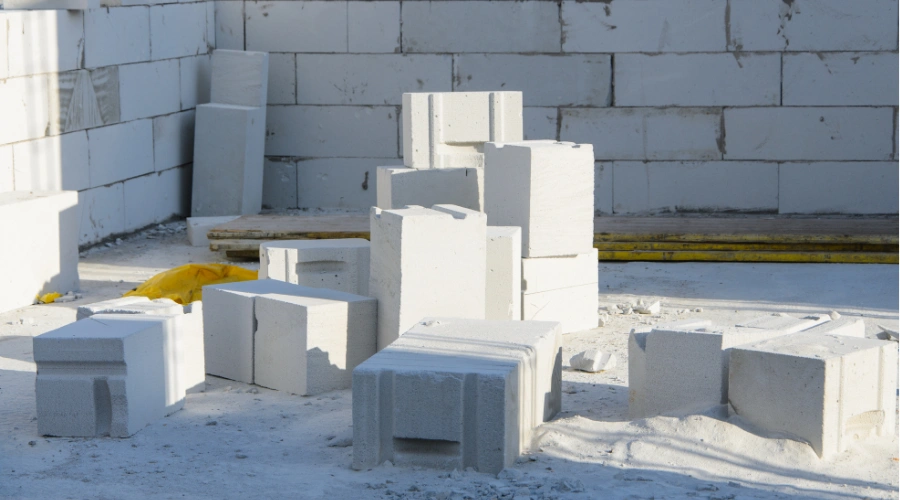

What Are AAC Blocks?
The AAC blocks are pre-fabricated lightweight concrete blocks made of a mixture of cement, lime, fly ash and aluminium powder. The chemical reaction produces air pockets that impart low density and insulate the blocks. After being cast, they are cured using an autoclave that strengthens them without adding weight.
Such types of blocks resist fire, insulate against sound, and are sustainable. That makes these highly suitable materials for both load-bearing and non-load-bearing walls. They speed up construction and also help reduce the effects of traditional resource-intensive building methods on the environment.
Technical Specifications of AAC Blocks
Size and Dimensions
AAC blocks come in modular and non-modular sizes as described in IS 2185 Part 3. The commonly available dimensions of an AAC block are 600 ×200/240 mm thicknesses ranging from 75 mm to 300 mm. The blocks, being precision-manufactured, ensure dimensional accuracy of ±1.5 mm, thereby reducing plaster thickness and improving the finish quality. The standard sizes indeed help in minimising mortar joints and increasing the rate of masonry. Modular sizes also align with Indian construction standards, therefore reducing construction wastage and avoiding resizing.
Density and Weight
Indian standards categorise the AAC blocks with respect to dry density, which normally lies between 451 kg/m³ to 650 kg/m³. This makes AAC much lighter than the conventional clay bricks (approximately 1600-1700 kg/m³). Therefore, less weight would decrease structural dead loads, which ultimately saves the cost of the foundation and load-bearing members.
According to IS: 2185, AAC blocks must match the density classification depending on the structural application (Grade I and II). This ensures conformity with Indian structural design codes, including IS 456 for reinforced concrete structures.
Compressive Strength
According to IS 2185 part 3, AAC blocks require a minimum compressive strength of 3 N/mm² to be used for non-load-bearing walls and load-bearing applications, 4 N/mm² and above.
AAC blocks of higher grades (≥5 N/mm²) are used for multi-story buildings and seismic zones. Strength tests are done as per IS 3495. The Indian building code permits AAC in both load-bearing and infill wall systems, subjected to structural designs with regard to IS 875 and IS 1893 (for seismic design).
Thermal Conductivity and Insulation
AAC blocks yield good thermal insulation; thermal conductivity normally ranges from 0.16 to 0.24 W/m·K. Not explicated much in thermal performance by IS: 2185, AAC finds recognition as a thermally efficient walling system in the Energy Conservation Building Code (ECBC) and National Building Code (NBC), 2016.
These properties help achieve the U-value criteria for external walls in the climate zones of India, thereby making them highly applicable for green buildings and energy-efficient houses. The thermal efficiency of the walls also gives valuable credits under the IGBC and GRIHA.
Sound Insulation and Acoustic Properties
AAC blocks have very high sound insulation, with a sound transmission class (STC) rating of up to 42 dB, depending on the block thickness. Acoustic properties are not directly specified by IS 2185, but AAC performance conforms to NBC 2016 Part 8 recommendations for sound insulation in residential as well as commercial buildings.
Thicker AAC walls (150-200 mm) are generally built in hotels, hospitals, and academic institutions where acoustic comfort is a paramount concern.
Water Absorption and Moisture Resistance
As per IS 2185 Part 3, the maximum water absorption of AAC blocks should be 10% by mass, tested according to IS 3495 (Part 2). Low absorption increases the resistance to dampness, which in turn reduces efflorescence, a common phenomenon with traditional bricks.
Due to the specification according to IS, the drying shrinkage of AAC blocks is low (maximum at 0.04%), thus minimising the number of surface cracks. However, in external walls, the application of proper waterproof plastering or coating is advised with regard to the IS 12089 requirement for water-resistant finishes.
Fire Resistance of AAC Blocks
AAC blocks are classified as noncombustible and fall into the specifications given for Class A1 under IS 3808, which covers fire resistance for construction materials. Walls constructed with AAC could offer fire resistance for up to 4 hours, depending upon their thickness, in accordance with the NBC guidelines.
The Bureau of Indian Standards specifies that AAC can be used in fire-rated partitions and corridors leading to exits. Due to their fire resistance, AAC enhances the safety of high-rise buildings and those requiring fire safety under the IS 1642 and NBC 2016 fire safety codes.
Environmental and Sustainability Aspects
AAC blocks are the answer to eco-friendly construction in India, as endorsed by the GRIHA and IGBC green building certification systems. Fly ash (a by-product of thermal power plants) makes up to 60% of the mix; hence, the use of AAC helps lessen the environmental burden.
The energy consumption in the production of AAC is less than traditionally fired-clay bricks, and these blocks are 100% recyclable. Moreover, AAC also helps to save on cement and steel consumption by 15-20% and mortar consumption by up to 60%, thereby conforming to resource efficiency objectives laid down by IS 383 for aggregates and sustainable construction practices defined under the NBC.
Conclusion
AAC blocks can be termed as an effective, sustainable material in place of traditional bricks with the benefits of strength, insulation, fire resistance, and speed of construction. Constant-size lightweight properties make handling easy and move the construction faster without affecting performance. The added advantages of energy efficiency and low environmental effects make AAC blocks perfect for modern green buildings. Whenever it is for residential, commercial, or industrial use, AAC blocks are truly creating a smarter future for sustainable construction.
