Weight batching of concrete is a time-honoured method in construction. In this type of batching, the materials are measured by weight rather than volume. They are highly preferred choices for large-scale projects and critical applications. In recent years, there has been a significant shift towards greater accuracy and efficiency. These innovations not only streamline the batching process but also facilitate real-time monitoring.
By delving into the integration of weight batching, we can appreciate its importance in the construction industry. Let’s get into detail and learn about its significance and technical aspects.
Process of Weight Batching
Weight batching of concrete is a method where the ingredients of concrete (cement, sand, coarse aggregate, and water) are measured by weight. This method is preferred for large-scale industries. They are applied especially on critical construction projects due to their accuracy and consistency. It plays a crucial role in achieving the desired strength and durability. Here are the technical aspects and detailed steps involved in weight batching:
Technical Aspects of Weight Batching
Measurement of Ingredients:
- Measurement precession
- Cement: Cement is always measured by weight which is represented in kilograms. The standard weight of one bag of cement is 50 kg. The accuracy should be within ±2% of the cement quantity.
- Aggregates: Fine and coarse aggregates are measured using weighing scales. The accuracy of the scales should be within ±3% of the batch quantity.
- Water: Water is measured by weight using meters or weights. The 1 litre of water is often weighed with 1 kg of cement. The accuracy for water measurement should be within ±1% of the total weight.
- Admixtures: These are also measured by weight, with an accuracy of ±5% of the batch quantity.
Proportioning:
The proportions of the ingredients highly influence the design of the concrete and its properties.
For example, for M20 grade concrete, the ratio might be 1:1.5:3 by weight.
It contains
- Cement= 1 part
- Fine aggregate= 1.5 part
- Coarse aggregate= 3 part
The water-cement ratio is crucial to obtain the desired strength and improve the workability of the concrete.
Moisture Content: The moisture content of the aggregate must be considered in the right quantity. Adjustments can be made to obtain the desired concrete mix. These adjustments depend on whether they are measured in dry or wet state.
Let’s learn the process and steps involved in the weight batching of concrete along with its significance. The steps include as follows:
- Material Preparation
- Weighing
- Mixing
- Discharge
Material Preparation
Cement, aggregates and water are the basic ingredients that are necessary for concrete. Additionally, admixture can be included in the concrete as it comprises special properties.
Cement and aggregates should be obtained from a dry place and free from impurities. It should be protected against moisture absorption. The fine and coarse aggregates are usually stored in separate bins to avoid contamination.
Weighing
Materials are weighted according to the mix design accurately to provide comprehensive strength. To obtain precise measurements, either weighing scales or automatic batching plants are used. Aggregates are often adjusted for moisture content to ensure the correct weight.
Loading materials can be of two types, namely:
- Sequential weighing
- Normal weighing
In sequential weighing the materials are added one by one to the weigh hopper. The typical order is coarse aggregates, fine aggregate, cement and then water.
In normal weighing each material is weighed separately. The weight hoppers measure the weight of each material as it is added. Once the desired weight is acquired the process stops automatically
An accuracy check is done to ensure that the weight of each material is within a specific tolerance. Adjustments are accordingly made to obtain the desired measurements.
Once the overall materials are weighed, they are processed into a concrete mixer. It can be either done manually or automatically, depending on the preferred batching system.
Mixing
The mixing time typically ranges from 1.5 to 3 minutes. It depends on the type of mixture and batch size used. The different types of mixers used are
- Tilting drum mixer
It is suitable for mixes with low workability and large aggregates
- Non-tilting drum mixer
The drum remains horizontal in this type and discharging occurs by reversing the drum rotation.
- Pan type mixer
It is a forced action mixer that ensures thorough mixing by using blades and paddles.
Discharge
Weight Batchers Equipment
Weigh Batchers are essential in construction to obtain accurate measurements and mixing of the concrete ingredients. Here is a list of equipment explained with uses:
Manual Weight Batching
These are suitable for small projects. The weighing and batching are done manually by hand by using an ordinary platform scale.
The process includes includes:
- Measurement of each ingredient
- Then mix them manually by adding them to the mixer
Advantage: Simple and cost-effective for small projects
Disadvantage: Time-consuming and prone to human error.
Semi-automatic Weight Batching
The semi-automatic weight batching uses weight buckets and hoppers. They are done with human interventions for discharging and loading. In this, the bin gates are manually opened, but the system automatically closes after the material is delivered.
Key features include:
- The operator starts the process by opening the Bin gates.
- The system automatically closes the gate when the required weight is reached.
Advantage: Reduce human error and increase deficiency when compared to manual batching
Disadvantage: It requires manual intervention which can slow down the process.

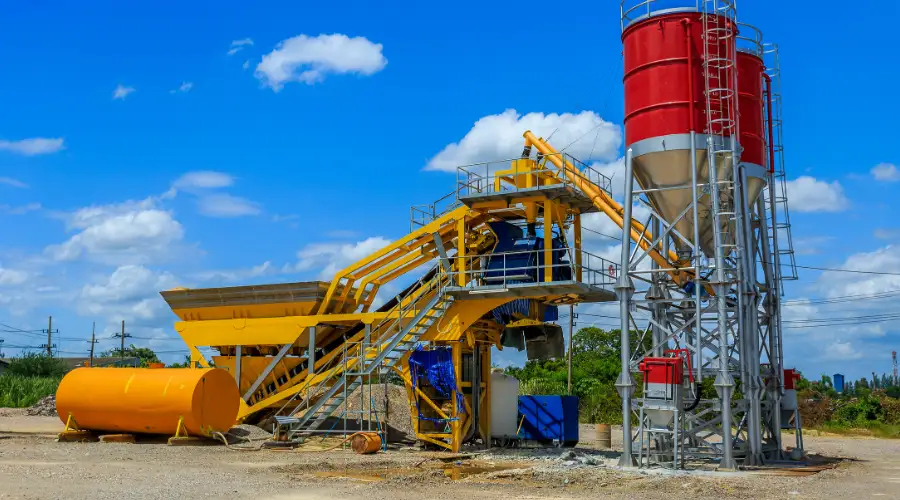

Fully Automatic Weigh Batching
In fully automatic systems, materials are weighed automatically, including both discharging and loading processes.
Specific features include:
- The microprocessor controls the batching including the opening, weighing, mixing, discharging and adjusting of the ingredients.
- It ensures high precision and consistency of the mix.
Advantage: Highly efficient which reduces the labour cost and minimises the errors.
Disadvantage: The initial setup is higher and requires technical experts for maintenance.
Comparison of Weigh Batching and Volumetric Batching
| Aspect | Weigh batching | Volumetric matching |
| Accuracy | More accurate as it measures ingredients by weight | Less accurate as it measures ingredients by volume and can vary widely. |
| Consistency | Provides consistent quality due to precise measurement | Quality can be poor due to inconsistent measurement |
| Equipment required | The weigh batching equipment used is weigh scales or load cells for measurement. | It uses gauge boxes or containers for measuring |
| Calibration | Regular calibration of equipment is important to maintain accuracy. | Less frequent calibration is needed when compared to weigh batching |
| Automation | It can be easily automated by reducing human error | Difficult to automate, leading to potential human error |
| Suitable Project type | It is ideal for large-scale projects where precession is essential | It is ideal for smaller construction projects like residential buildings or repairs |
| Material waste | Minimal material waste in this type | Higher chance of material waste due to inaccurate measurement |
| Cost | Higher initial cost due to the equipment setup | Lower initial cost |
| Speed of batching | It is slow when compared to volumetric batching | Fasters as materials are quickly measured by volume |
| Flexibility | Less flexible as it is designed specifically and controlled according to proportions | These are more flexible but less precise in the ratio of mixing |
| Environment and impact | Low environmental impact due to reduced material wastage. | It causes high environmental impact due to the potential overusage of materials. |
Advantages and Disadvantages of Weight Batching of Concrete
Advantages
- Weight batching of concrete provides precise measurement of materials. This ensures consistency in concrete quality resulting in uniform strength and durability.
- It facilitates better quality control by allowing adjustments. Also, it reduces material wastage by using precise quantities.
- They typically result in higher compressive strength when compared to volume batching.
- The weight batching is best suited for projects with specific moisture content requirements. They can also be adaptable for various types of concrete mix.
- It also helps in the accurate recording of data for quality assurance. Therefore, it provides better workability and finish.
Disadvantages
- The initial cost for setting up is higher due to the weighing equipment.
- Requires regular maintenance and calibration of weighing equipment
- It depends on the reliable power supply for operation and also needs more space for setup.
- It is more technical, leading to delays as it is a complex system.
Conclusion
The weight batching of concrete stands as a cornerstone of modern construction practices. It prioritizes precision and consistency by adopting highly technical equipment. Weight batching has various significant advantages. The innovations and software that integrate real-time data can transform the batching landscape, allowing dynamic adjustments.
Integrating IoT devices and AI-driven analytics can push the boundaries and improve efficiency and quality. The weight batching of concrete ensures the delivery of reliable and high-quality concrete. The construction industry continues to refine its methods. As weight batching evolves, it promises to remain a vital component in meeting the demands of modern construction.
