RCC staircase design and construction involves planning, reinforcing, casting, finishing, and curing concrete stairs that safely connect different floors of a building. RCC staircases are common in Indian homes, apartments, and commercial buildings because they offer strength, durability, fire resistance, and flexible finishing options. A good staircase depends on correct tread and riser dimensions, landing placement, waist slab thickness, reinforcement detailing, formwork, concrete quality, and curing. This article explains RCC staircase components, types, advantages, limitations, construction process, common mistakes, and quality checks before casting.
Quick Summary
An RCC staircase is a reinforced concrete stair system built with concrete and steel bars. It may be cast in situ or installed as precast units. Good RCC staircase design and construction should consider stair dimensions, landing size, waist slab support, reinforcement, concrete grade, formwork, safety railing, finishing, and curing.
What Is an RCC Staircase?
An RCC staircase is made up of concrete that is reinforced with steel rods and connects different levels of a building. Steel reinforced concrete provides strength and stability to the staircase, enabling it to bear high amounts of loading. Offering several benefits over other materials that are used to make staircases, concrete staircases are widely used in buildings of all sizes and types across the world.
RCC Staircase Details and Components
A staircase design RCC unit typically has the following components:
- Tread: This is the flat, horizontal portion of a step on which people walk. Its width is between 220-250mm in residential buildings and 250-300mm in public buildings.
- Riser: It is the vertical portion of a step, whose height ranges between 120-150mm in public buildings and 150-180mm in residential buildings. Although absent in many modern designs for aesthetic reasons, risers provide safety by ensuring that a person’s foot does not fall through gaps while walking upstairs.
- Landing: A landing provides a break from climbing up steps continuously. It is recommended to provide a landing after a maximum of 13 steps in a flight.
- Supporting Beams/ Walls: RCC staircases are supported by side beams or load bearing walls. These supports are generally present along the length or width of landings.
Other elements, such as railings and flooring materials, help in forming a complete staircase unit. The Indian Standards code IS 456: 2000 provides guidelines for constructing RCC staircases.
Types of Concrete Staircases
Based on Staircase Profile

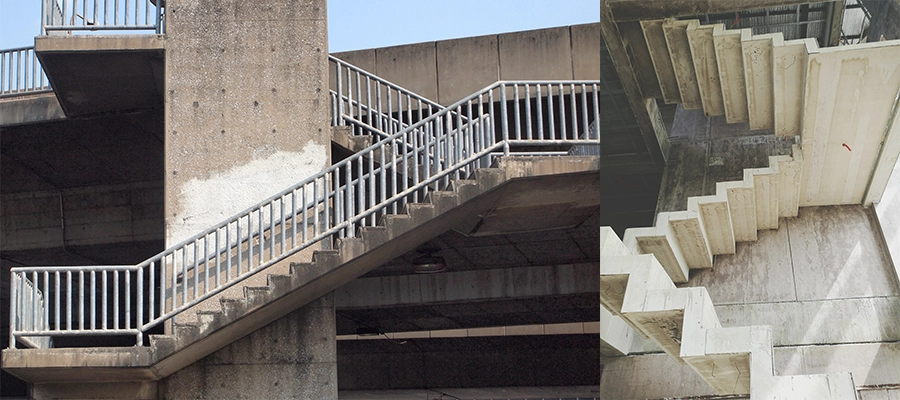

- Waist Slab Staircase: In such a staircase, the treads and risers are erected on a sloping concrete slab that spans across the landings on both sides. A waist-slab staircase has a clean, straight soffit or underside, which is easy to build and maintain.
- Folded Plate Staircase: This staircase is a monolithic structure with a bottom surface that is parallel to the treads and risers. A uniform thickness is maintained all along the staircase, which looks like a thickened zig-zagging line.
- Cantilevered RCC Stairs Design: Such a staircase typically does not have any risers and is supported by a sloping beam and/or wall that is located at the center or edge of the staircase width. These staircases have a floating appearance and are very popular in modern construction.
Based on Concrete Casting Method
- Precast Staircase: Individual steps and landings or entire staircases can be manufactured in factories and transported to the construction site as precast concrete units. Precast steps reduce the construction time and labour required and assure uniform quality in all the elements. They are especially beneficial for large buildings with multiple staircases that have the same design and size.
- Cast In-Situ RCC Staircase: The concrete in such a staircase is mixed and poured on the construction site after shuttering is placed and the steel reinforcement bars are bent and fixed. This method is ideal for small buildings with 1-2 staircases and in case customised designs are required.
Apart from these classifications, different types of stairs based on the shape—such as dog-legged, open well and L-shaped—can also be built with RCC.
RCC Staircase Design and Construction Requirements
The most important design requirement is safe and comfortable movement. A staircase with high risers or narrow treads can feel unsafe, especially for children, elderly users, and daily household movement.
Brick&Bolt lists common tread and riser ranges, including 220–250 mm tread width for residential buildings and 150–180 mm riser height for residential stairs. It also notes that landings are recommended after a maximum number of steps in a flight.
Key design points include:
- Comfortable tread and riser proportion
- Adequate stair width
- Proper landing size
- Safe headroom
- Correct support at landing and flight ends
- Proper reinforcement detailing
- Non-slip finish
- Strong railing or handrail
- Good lighting and ventilation
Final dimensions should follow local building bye-laws, National Building Code guidance where applicable, and the approved architectural and structural drawings.
Cast-in-Situ vs Precast RCC Staircase
|
Factor |
Cast-in-situ RCC staircase |
Precast RCC staircase |
|
Construction place |
Cast at site |
Made off site and installed |
|
Best use |
Homes and custom layouts |
Repetitive stair designs |
|
Time |
Slower due to formwork and curing |
Faster installation |
|
Flexibility |
High |
Limited after fabrication |
|
Quality control |
Depends on site workmanship |
Better factory control |
|
Equipment need |
Normal site tools |
Lifting and placement equipment |
|
Cost |
Often practical for small projects |
Can be higher for small jobs |
For independent homes, cast-in-situ RCC stairs are usually more practical. For apartments, commercial buildings, or repetitive floor plans, precast stairs can reduce site work time.
RCC Staircase Construction Process
The construction process should follow approved architectural and structural drawings.
1. Mark stair layout
The stair position, width, flight length, landing level, riser count, tread size, and floor-to-floor height should be marked accurately. Mistakes at this stage can cause uneven steps.
2. Prepare formwork
Formwork supports the wet concrete until it gains strength. The shuttering should be rigid, properly aligned, leak-proof, and strong enough to carry concrete, steel, workers, and vibration loads.
3. Fix reinforcement
Main bars, distribution bars, extra bars near supports, landing reinforcement, and anchorage must be fixed as per structural drawings. Cover blocks should be used to maintain concrete cover.
4. Check dimensions before casting
Before concrete is poured, check tread, riser, landing level, waist slab thickness, reinforcement spacing, cover, support condition, and formwork stability.
5. Pour concrete
Concrete should be placed carefully from the lower portion upward where suitable. It should be compacted properly to avoid honeycombing and voids.
6. Finish steps
The step surfaces should be levelled and finished according to the final flooring plan. If tiles or stone will be installed later, the rough level should allow finish thickness.
7. Cure the staircase
Curing supports strength development and reduces shrinkage cracks. The staircase should not be loaded heavily before the concrete gains adequate strength.
8. Install railing and final finish
Once the RCC work is complete, railing, handrail, nosing, anti-skid strips, tiles, stone, or other finishes can be installed.
Why Opt for an RCC Staircase?
- High Strength: RCC staircases have high tensile and compressive strength and can bear large live loads and dead loads. They can thus be used for low-rise as well as high-rise buildings with large occupancy levels.
- Maintenance and Durability: A steel staircase can undergo rusting, and a wooden staircase can rot, especially in regions with high humidity levels. However, a concrete staircase does not experience these issues, is extremely durable and requires little to no maintenance.
- Large Spans: Concrete staircases can have large spans of more than 1m with adequately designed supporting beams and/or walls, making them ideal for commercial spaces like shopping malls and hospitals.
- Fire Resistance: RCC is a non-combustible material and can resist fires better than other materials which are used for making staircases, such as steel and timber.
- Finishing Options: With the right shuttering, an RCC staircase can be left exposed to achieve a raw, industrial aesthetic with treads that are slip-resistant. If not, other flooring types like tiles, natural stone and wood can also be easily installed on concrete steps.
Limitations of an RCC Stairs Design
- Limited Flexibility: Unless ferrocement is used, it is generally difficult to mould RCC staircases into curvilinear or organic shapes and forms. The main steel reinforcement bars in these staircases are typically thick (around 12-16mm in diameter), making it tough to bend them into organic shapes.
- Construction Time and Cost: For cast-in-situ concrete staircases, processes like fixing shuttering materials, bending and installing steel rebars and concrete mixing, pouring and curing are required, all of which are more time-consuming than steel or wooden staircase erection. Precast concrete stairs can be fixed faster, but these are much more expensive.
- Labour Cost: Due to the intense and time-consuming labour processes, the cost of labour for making an RCC staircase is high.
- Weight: Compared to steel or wooden staircases, the weight of a concrete staircase is much higher. This increases the load on the structure and foundation, further increasing the construction cost.
RCC Staircase Safety and Comfort Checklist
|
Checkpoint |
Why it matters |
|
Riser height is uniform |
Prevents tripping |
|
Tread width is comfortable |
Improves walking safety |
|
Landing is properly placed |
Reduces fatigue and improves circulation |
|
Formwork is stable |
Prevents collapse during casting |
|
Reinforcement matches drawing |
Ensures structural strength |
|
Concrete is compacted |
Reduces voids and honeycombing |
|
Curing is completed |
Improves strength and durability |
|
Surface is non-slip |
Reduces fall risk |
|
Railing is strong |
Improves user safety |
|
Lighting is adequate |
Supports safe use at night |
This checklist should be reviewed before casting and again before handover.
Expert Note
RCC staircase design should be checked by a structural engineer and coordinated with the architect. The final design depends on floor-to-floor height, available space, stair width, span, support condition, concrete grade, reinforcement, live load, headroom, landing location, and local building requirements. Site teams should not alter stair dimensions, reinforcement, or support details without approval.
Conclusion
RCC staircase design and construction should balance strength, comfort, safety, and appearance. A well-built RCC staircase needs correct tread and riser dimensions, proper landings, strong formwork, accurate reinforcement, good concrete, careful compaction, curing, and safe finishing. It is durable and suitable for most residential and commercial buildings, but mistakes are difficult to fix after casting. Before construction, confirm the stair layout and structural details with qualified professionals.
FAQs
- What is an RCC staircase?
An RCC staircase is a reinforced cement concrete stair system made with concrete and steel bars. Concrete provides compressive strength, while reinforcement helps resist tension and bending. RCC stairs are commonly used in homes, apartments, offices, schools, and commercial buildings because they are strong, durable, and fire-resistant. - What are the main parts of an RCC staircase?
The main parts of an RCC staircase are tread, riser, flight, landing, waist slab, reinforcement bars, support beams or walls, railing, nosing, and floor finish. Each part affects comfort, safety, or structural performance. Proper coordination between architectural and structural drawings is important before casting. - Which type of RCC staircase is best for homes?
A dog-legged or waist slab RCC staircase is commonly suitable for homes because it is practical, strong, and space-efficient. L-shaped and open-well stairs may also work depending on layout. The best type depends on floor height, available space, design preference, structural support, and budget. - What is the ideal tread and riser for residential RCC stairs?
Residential RCC stairs commonly use comfortable tread and riser proportions, often with treads around 220–250 mm and risers around 150–180 mm. Exact dimensions should follow local bye-laws, approved drawings, and user comfort. Uniform riser height across all steps is essential for safety. - Is RCC staircase better than steel staircase?
RCC staircase is better for durability, fire resistance, low maintenance, and permanent building use. Steel stairs are lighter, faster to install, and easier to modify. The better choice depends on building type, load, design style, budget, construction speed, and maintenance expectations. - Why do cracks appear in RCC staircases?
Cracks in RCC staircases can appear due to shrinkage, poor curing, incorrect reinforcement, weak formwork, settlement, overloading, or poor concrete compaction. Small surface cracks may be repairable, but cracks in the waist slab, landing, or support zones should be inspected by an engineer. - Can RCC stairs be precast?
Yes, RCC stairs can be precast as individual steps, flights, or complete staircase units. Precast staircases reduce site labour and speed up construction, especially in repetitive building layouts. They need accurate measurements, lifting equipment, safe transport, proper connections, and professional installation. - Who should design an RCC staircase?
An architect and structural engineer should design an RCC staircase together. The architect plans space, comfort, and circulation, while the structural engineer designs the waist slab, reinforcement, supports, and load safety. Site workers should follow approved drawings and avoid changing dimensions during construction.
