Reinforced cement concrete structure construction is one of the most widely used building methods for residential, commercial, and industrial projects. It combines concrete’s high compressive strength with steel reinforcement’s tensile strength to create durable and stable structures. RCC structures are valued for their ability to support heavy loads, resist environmental conditions, and provide design flexibility. This guide explains RCC construction, its components, construction stages, benefits, applications, and important quality considerations.
What is Reinforced Cement Concrete (RCC)?
Reinforced cement concrete- RCC, is the building material. It’s more stable than traditional concrete. This concrete is made with reinforcing bars or steel rebar mesh along with cement, sand, aggregates, and water. The steel rebar or reinforcing bar helps to distribute stress and pressure evenly throughout the material. This makes the RCC less likely to shatter or crack under stress and more strong to tensile loading in reinforced cement concrete structure construction.
Different Types of Reinforced Cement Concrete (RCC)
The following are major RCC types used in reinforced cement concrete structure construction:
- Steel-Reinforced Concrete
- Fibre-Reinforced Concrete
- Pre-Stressed Concrete
Steel-Reinforced Concrete
In this type of RCC, steel reinforcement is embedded to hold the concrete together. It prevents large cracks and adds overall strength. The major use of steel-reinforced concrete is to combine the compressive strength of concrete with the tensile strength of steel to carry heavy loads, such as footings, foundation walls, and columns, driveways with heavy traffic, carport floors, and large shed floors.
Fibre-Reinforced Concrete
Fibre-reinforced concrete is generally used in pavement overlays and for new construction. It is prepared with a combination of cement, sand, aggregates, water and other fibrous materials, such as glass fibres. Using steel or alternative fibre in preference to steel rods for reinforcement can reduce the overall cost. Fibre-reinforced concrete is used in prefabricated concrete structures, concrete reactor pressure vessels, blast-proof structures, machine frames, tunnel liners, and thermal impact-resistant structures.
Pre-Stressed Concrete
Pre-stressed concrete is a highly advanced type of reinforced concrete that combines the strength of concrete and steel to prevent cracking and reduce brittleness. This is achieved through a process called pretensioning, where high-strength steel is stretched before concrete is poured around it and allowed to harden.
The benefits of pre-stressed concrete include:
- High compressive strength
- No tension cracks
- Reduced corrosion
- Lower shear stress
- Lighter weight
Advantages of RCC Structures Construction
- Compared to other building materials, reinforced cement concrete holds better compressive and tensile strength. This is mainly because steel elements are used in production.
- RCC-built houses and buildings are more durable than other buildings.
- Although the initial construction cost might be higher than others, RCC structures or buildings will have long-term benefits and low maintenance costs.
- Reinforced cement concrete structures have better fire resistance than steel structures.
Limitation of RCC Home Construction
- One of the common issues in RCC buildings is the potential for shrinkage after hardening, which can lead to strength loss or the development of cracks. This highlights the importance of understanding and addressing this issue during the construction process.
- Numerous steps are involved in constructing an RCC building, such as casting, mixing, and curing of concrete. However, if these steps are not conducted properly, the RCC’s final strength may be altered.
- Installing and removing RCC formwork before and after pouring concrete will cost extra.
Innovations of RCC Building Constructions
- Green Concrete: Incorporating recycled materials, sustainable materials, and eco-friendly additives into reinforced cement concrete production will be a more sustainable building practice.
- 3D Printing: The application of 3D printing technology to produce complicated RCC structures with great precision and minimal material waste.
- Self-Healing Concrete: Innovations in materials now enable concrete to self-repair tiny cracks and damage, thereby prolonging the life of RCC constructions.
Methods of Reinforced Cement Concrete Structure Construction
RCC construction methods commonly involve the following major steps:
- Layout
- Mixing
- Reinforcement Work
- Formwork
- Pouring Concrete
- Curing
1. Layout
To build RCC elements like RCC columns/pillars at the construction site, the layout must be surveyed and marked with grid lines for column marks.
2. Mixing
Proper mixing of cement, aggregates, water, and admixtures to get the desired concrete strength and consistency is very important. This can be achieved on-site or by using ready-mixed concrete.
3. Reinforcement Work
Reinforcement involves placing steel bars (rebars) or mesh within the concrete to provide tensile strength and improve the overall structural integrity. The process involves cutting and bending steel bars to the required length to fit into the design specification. Positioning the rebars within the formwork according to the structural drawings. Securing the rebars with binding wires to maintain their position during concrete pouring
4. Formwork
An integral part of the construction process is the building of temporary molds to hold the concrete in place until it hardens. Formwork, whether made from timber, steel, or plastic, is not just a tool, is used to shape and support the structure during the curing process.

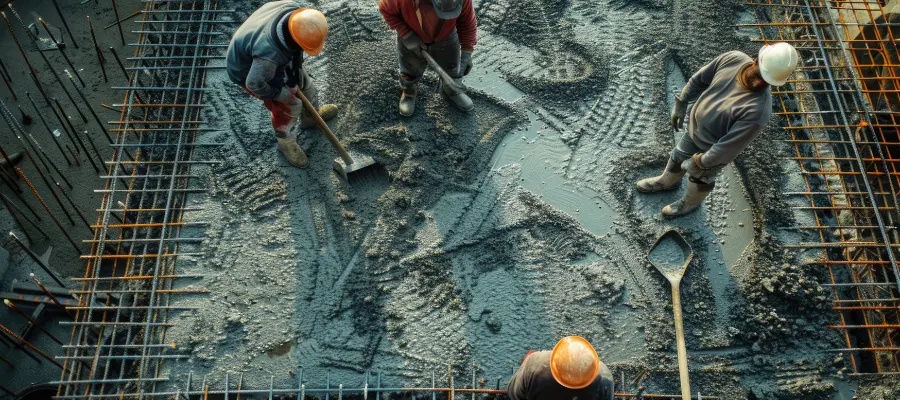

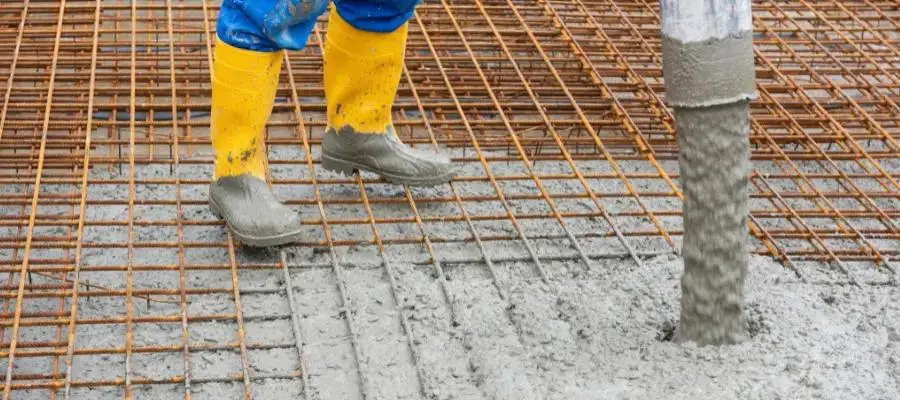

5. Pouring Concrete
Pouring the concrete into the formwork can be done manually or with the help of a pouring machine or pump. The appropriate type of compaction of the concrete should be performed properly to remove air bubbles or voids and ensure uniform distribution. The compaction of concrete can be mechanical, with vibration, or by using self compacting concrete.
6. Curing
You have to allow the concrete to harden. Different curing methods can enhance its strength over time. By keeping it moist or using curing compounds, you can avoid cracks and ensure its durability.
Conclusion
Reinforced cement concrete structure construction remains the foundation of modern building projects because it combines strength, durability, and design flexibility. From foundations and columns to beams and slabs, every RCC component contributes to the overall stability of a structure. By using quality materials, following approved engineering designs, and maintaining proper construction practices, homeowners and builders can create buildings that deliver reliable performance for many years.
FAQs
- What is reinforced cement concrete structure construction?
Reinforced cement concrete structure construction is a building method that combines concrete with steel reinforcement to create structural elements capable of resisting both compressive and tensile forces. - Why is RCC widely used in construction?
RCC offers high strength, durability, fire resistance, weather resistance, and flexibility in architectural design, making it suitable for a wide range of building types. - What are the main components of an RCC structure?
The primary components include foundations, columns, beams, slabs, staircases, and structural walls, all working together to support the building. - Which materials are used in RCC construction?
RCC construction typically uses cement, sand, coarse aggregates, steel reinforcement, water, and, where required, approved admixtures. - Why is steel reinforcement necessary in concrete?
Concrete is strong in compression but weak in tension. Steel reinforcement provides tensile strength, improves crack resistance, and enhances overall structural performance. - How important is curing in RCC construction?
Proper curing is essential because it allows concrete to gain strength, improves durability, and reduces the risk of shrinkage cracking. - What are common quality issues in RCC construction?
Poor reinforcement placement, inadequate compaction, insufficient curing, low-quality materials, and incorrect formwork installation are common issues that can affect structural performance. - Should RCC structures be designed by structural engineers?
Yes. Structural engineers are responsible for designing RCC members, calculating loads, specifying reinforcement, and ensuring the building complies with applicable engineering standards and safety requirements.
